Jig


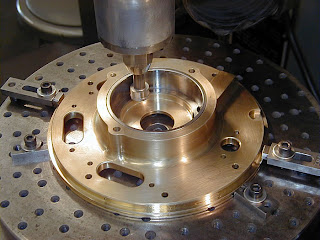

A jig is any of a large class of tools in woodworking, metalworking, and some other crafts that help to control the location or motion (or both) of a tool. Some types of jigs are also called templates or guides. The primary purpose for a jig is for repeatability and exact duplication of a part for reproduction. An example of a jig is when a key is duplicated, the original is used as a jig so the new key can have the same path as the old one. In the advent of automation and CNC machines, jigs are not required because the tool path is digitally programmed and stored in memory. jigs may be made for reforming plastics, and also for use in reproduction of materials. this also includes templates. see templates for details
Jigs or templates have been known long before the industrial age. There are many types of jigs, and each one is custom-tailored to do a specific job. Many jigs are created because there is a necessity to do so by the
tradesmen. Some are purely to increase productivity, to do repetitious activities and to add precision to a job. Because jig design is fundamentally based on logic, it is highly possible that the same jig created in one geographical region was created independently in another region or was created previously in another era and all the creators were unaware of each other's jig yet created it in an almost identical manner.
Tools of this class include
machining jigs, woodworking jigs (e.g. tapering jig), welders' jigs, jewelers' jigs, and many others.

The most-common jigs are drill and boring jigs. These tools are fundamentally the same. The difference lies in the size, type, and placement of the drill bushings. Boring jigs usually have larger bushings. These bushings may also have internal oil grooves to keep the boring bar lubricated. Often, boring jigs use more than one bushing to support the boring bar throughout the machining cycle.
In the shop, drill jigs are the most-widely used form of jig. Drill jigs are used for drilling, tapping, reaming, chamfering, counterboring, countersinking, and similar operations. Occasionally, drill jigs are used to perform assembly work also. In these situations, the bushings guide pins, dowels, or other assembly elements.
Jigs are further identified by their basic construction. The two common forms of jigs are open and closed. Open jigs carry out operations on only one, or sometimes two, sides of a workpiece. Closed jigs, on the other hand, operate on two or more sides. The most-common open jigs are template jigs, plate jigs, table jigs, sandwich jigs, and angle plate jigs. Typical examples of closed jigs include box jigs, channel jigs, and leaf jigs. Other forms of jigs rely more on the application of the tool than on their construction for their identity. These include indexing jigs, trunnion jigs, and multi-station jigs.
Specialized industry applications have led to the development of specialized drill jigs. For example, the need to drill precisely located rivet holes in aircraft fuselages and wings led to the design of large jigs, with bushings and liners installed, contoured to the surface of the aircraft. A portable air-feed drill with a bushing attached to its nose is inserted through the liner in the jig and drilling is accomplished in each location.
